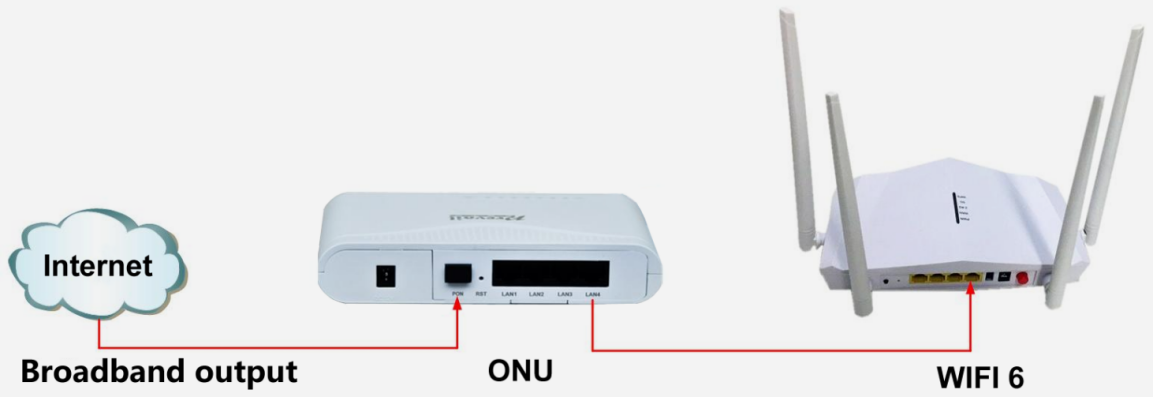

Router Physical Connection:
Hardware Specifications:
No. |
Interface |
Descriptions |
1 |
WAN interface |
● Provide 1 100/1000M self-adaptive network port, the color of WAN interface is yellow; |
● Support Auto-MDI/MDIX; |
● Compliant with IEEE 802.3 standard |
2 |
LAN interface |
● Provide 3 100/1000M adaptive network ports, the LAN interface is 100/1000 Base-T Ethernet interface, support direct connection and crossover line adaptive function. |
● LAN interface uses yellow port |
● Support Auto-MDI/MDIX |
● Compliant with IEEE 802.3 standard |
3 |
Power switch |
Control the power switch, the color of the power button is red |
4 |
USB |
The USB interface conforms to the USB 3.0 specification and support full speed rate |
When a single USB interface device is connected to one other USB device or USB Hub, the maximum working current of the interface should reach 1000mA; (USB circuit design can achieve the above capabilities) |
5 |
Power interface |
Connect the supplied power adapter, the interface specification general 2.0 |
6 |
Reset button |
Built-in reset button for recovering the factory configuration |
7 |
WPS button |
Press two seconds to enter the wireless PIN code function |
Indicator Light Descriptions:
No. |
Name |
Color |
Status and Descriptions |
1 |
Power |
Green |
ON: the system is powered on normally |
OFF: the system is not powered on or equipment failure |
2 |
WAN |
Red/Green |
Steady red light: network cable connected, but not connected to internet |
Steady green light: powered on and connected to the internet |
OFF: no power or equipment failure |
3 |
WPS |
Green |
ON: network connected |
Flashing: there is data transmission |
OFF: the system is not powered on and not connected to the network |
4 |
2.4G |
Green |
ON: the connection is normal |
Flashing: there is data transmission |
OFF: no power, no gateway connected, or network failure |
5 |
5G |
Green |
ON: the connection is normal |
Flashing: there is data transmission |
OFF: no power, no terminal connected, or network failure |
