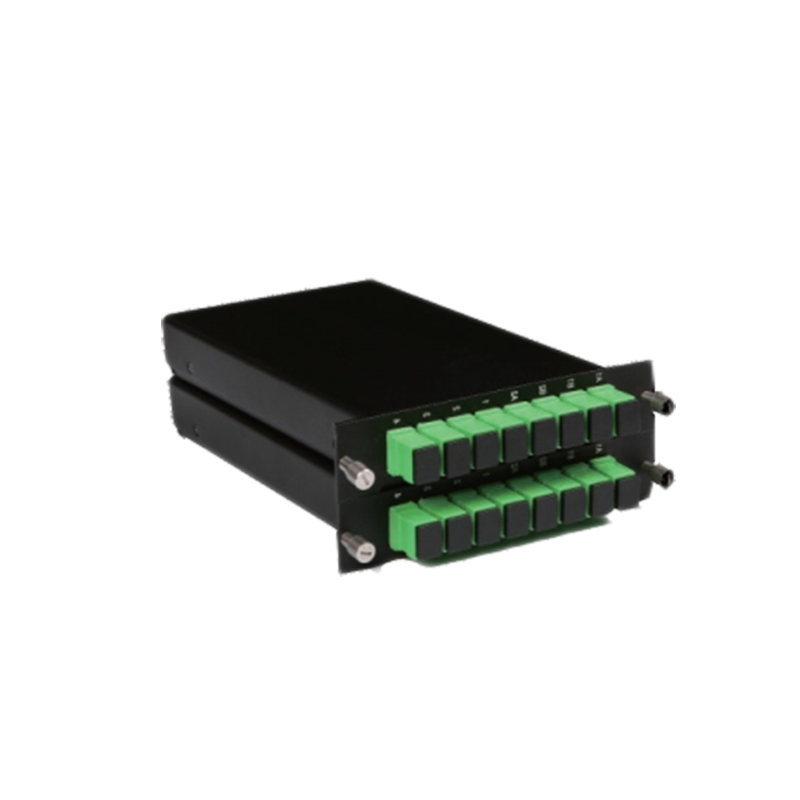

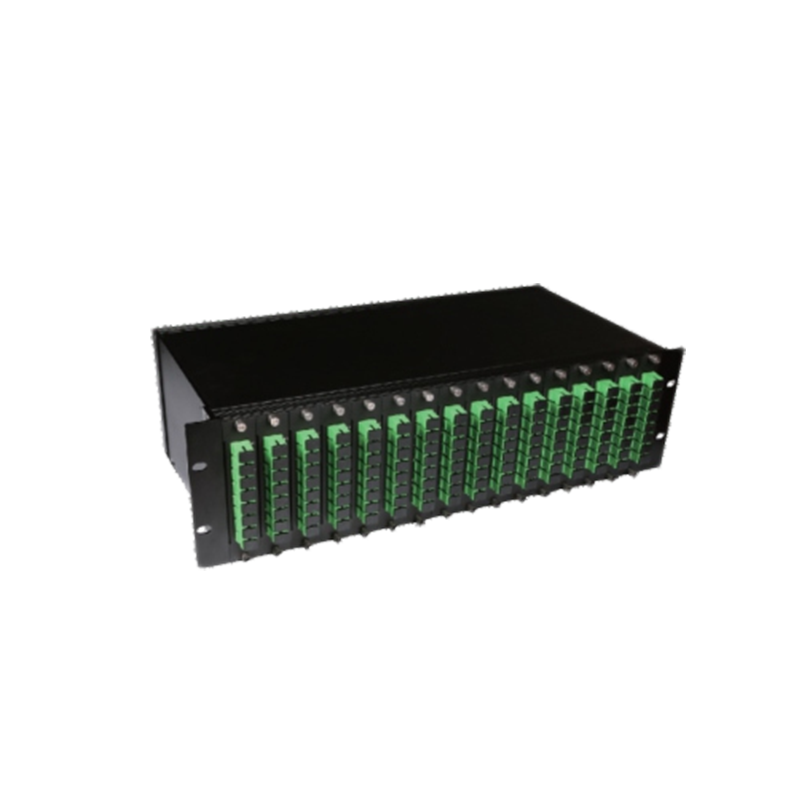

Feature
● Low insertion loss.
● Wide pass band.
● High channel isolation.
● High stability and reliability.
● Epoxy-free on the optical path.
Parameter |
4 Channel |
8 Channel |
16 Channel |
|
Mux |
Demux |
Mux |
Demux |
Mux |
Demux |
Channel Wavelength(nm) |
1270 ~ 1610/ 1271 ~ 1611 |
Channel Spacing(nm) |
20 |
Channel Passband(@-0.5dB bandwidth)(nm) |
±7.5/±6.5 |
Insertion Loss(dB) |
≤1.5 |
≤2.5 |
≤3.5 |
Channel Uniformity(dB) |
≤0.6 |
≤1.0 |
≤1. 5 |
Channel Ripple(dB) |
≤0.3 |
Isolation(dB) |
Adjacent |
N/A |
>30 |
N/A |
>30 |
N/A |
>30 |
|
Non-adjacent |
N/A |
>40 |
N/A |
>40 |
N/A |
>40 |
Insertion Loss Temperature Sensitivity(dB/℃) |
<0 .005 |
Wavelength Temperature Shifting(nm/℃) |
<0 .002 |
Polarization Dependent Loss(dB) |
<0 . 1 |
Polarization Mode Dispersion(ps) |
<0 . 1 |
Directivity(dB) |
>50 |
Return Loss(dB) |
>45 |
Maximum Power Handling(mW) |
300 |
Operating Temperature(℃) |
- 5 ~ +75 |
Storage Temperature(℃) |
-40~ +85 |
Package Dimension |
( L) 100x(W)80x( H) 10 |
( L) 141x(W) 115x( H) 18 ( L) 120x(W)80x( H) 18 |
(LxWxH)mm |
The above specifications are for devices without connectors.
