SFP Optical Module

There are 25G/ 100G/200G/400G optical modules of different specifications, which are suitable for different solutions. They can meet the needs of storage and network devices and can be widely used in high-speed networks and data centers.

PREV:No previous product
NEXT:Fiber Optical Connectors and Pigtails
  • Hardware specifications

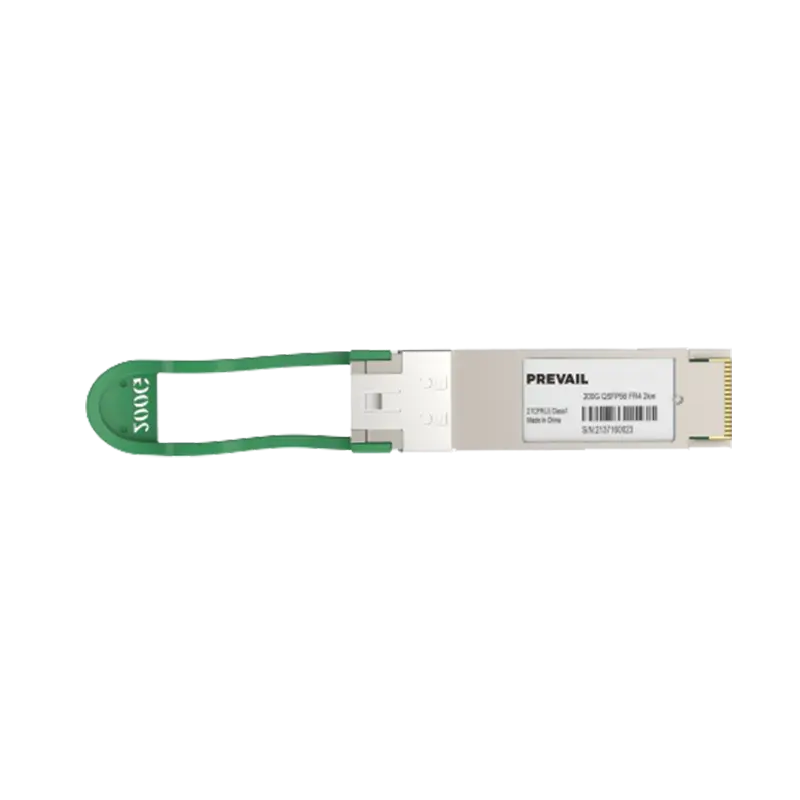

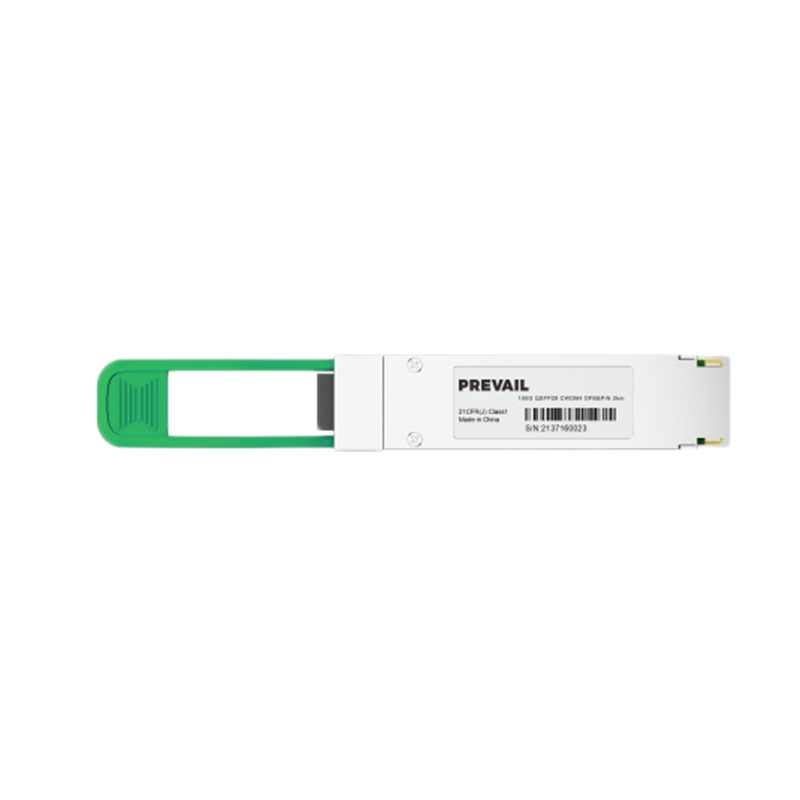

  • WLGH02K-DCL WLQH02J-DCL

    ● 200 Gigabit Ethernet (212.5 Gbit/s).

    ● Transmission length of up to 2 km over duplex SMF.

    ● Compliant to QSFP+ 28Gb/s 4X Pluggable Transceiver Specifications.

    ● Compliant to QSFP28 4X Hardware and Electrical Specification.

    ● Optical light source: 4- 4-channel 1310 nm EA-DFB LD.

    ● Optical receiver: 4-channel PIN photodetector.

    ● Low power consumption: 6.5 W max.

    ● Operating case temperature: 0 to 70 deg C.

    ● Compact size defined by Specification for QSFP+ 4X Module.

    ● Hot Z-Pluggable to 38-pin electrical connector.

    ● Latching mechanism: Pull tab.

    ● Two-wire common management interface.

    ● RoHS 10 (2011/65/EU + 2015/863) compliant.

    ● Compliant with 26.5625 GBd PAM4 x 4 lane 200GAUI-4 Electrical Interface specification.

    ● Compliant to 26.5625 GBd PAM4 x 4 wavelength 200GBASE-FR4 optical interface specification.

    ● Four-channel full-duplex transceiver modules.
    ● Transmission data rate up to 26Gbit/s per channel.

    ● Up to 2km transmission of single mode fiber.
    ● Low power consumption <3.5W.
    ● Operating case temperature 0°C to +70°C.
    ● 3.3V power supply voltage.
    ● RoHS 6 compliant.
    ● Hot Pluggable QSFP form factor.
    ● LC connector receptacle.
    ● Built-in digital diagnostic function.

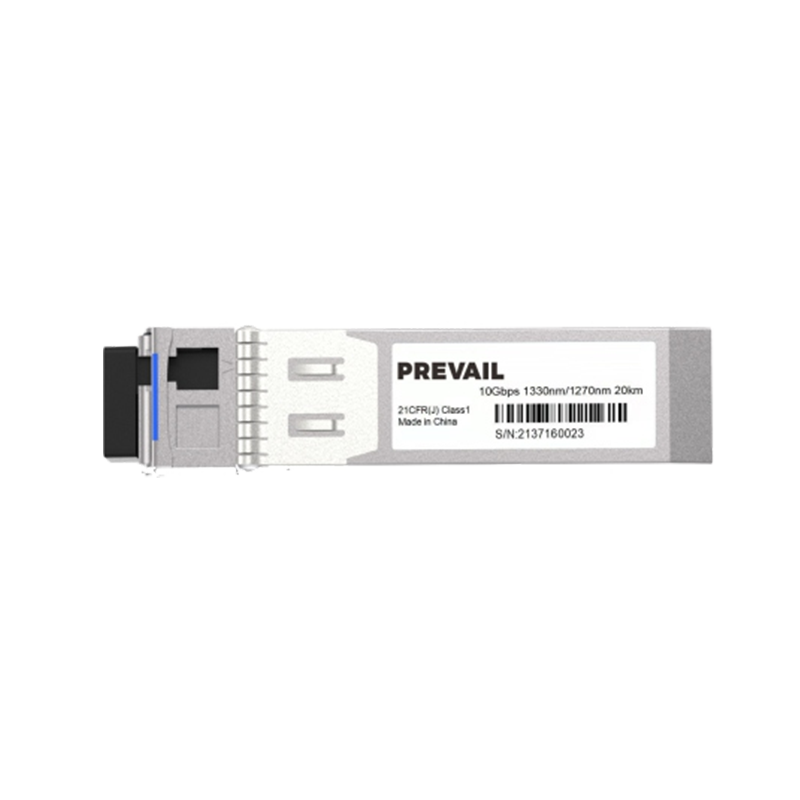

    WL778(87)2099-DxL WL5432043-LxS

    ● Up to 11.1Gbps Data Links.

    ● Up to 20km transmission on SMF.
    ● Power dissipation<1.5 W.
    ● 1270nm DFB laser and PIN receiver for uplink.
    ● 1330nm DFB laser and PIN receiver for downlink.
    ● 2-wire interface with integrated Digital Diagnostic monitoring.
    ● EEPROM with Serial ID Functionality.
    ● Hot-pluggable SFP+ footprint.
    ● Compliant with SFP+ MSA with LC connector.
    ● Single + 3.3V Power Supply.
    ● Case operating temperature range: 0°C to +70°C or -40 to 85°C.

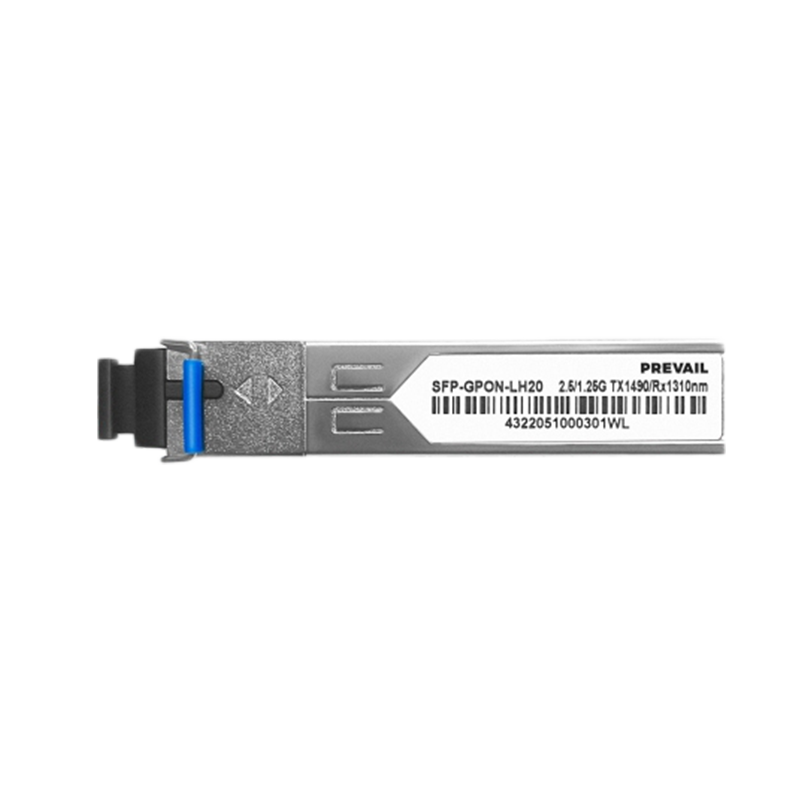

    ● SFP with SC/PC Connector Transceiver.

    ● 1490 nm DFB Tx with isolator.
    ● 1310 nm APD Rx.
    ● Digital diagnostics SFF-8472 Compliant.
    ● 2488 Mbps continuous mode Transmission.
    ● 1244 Mbps Burst mode receiver Data Rate.
    ● RX Fast Burst Mode Detection.
    ● Provide fast RSSI function.
    ● Operation case temperature: 0~70°C or -40~85°C.
    ● Class C+ link budget.
    ● Comply with ITU-T G984.2 Amendment 1.
    ● Complies with RoHS directive (2002/95/EC).
