Feature:
● Supports dual fiber/single fiber access, pluggable ONU units , with a maximum coverage radius of 20KM.
● CATV units up to 1GHz frequency, and support optical AGC function.
● The EPON part complies with the IEEE802.3ah standard and China Telecom EPON technical requirements V2.1/V3.0.
● Fully compatible with ITU-TG.984, using GPON uplink and downlink.
● Support OMCI+TR069 management mode.
● Ethernet self negotiation and MDI/MDIX automatic detection function.
● Rich VLAN and multicast functions, and supports data encryption and mutual isolation between different data ports.
● Plug and play, with functions such as automatic discovery, automatic configuration, and automatic upgrade, and support OAM remote configuration management.
● Supports network management platform EMS unified network management based on SNMP protocol.
can communicate well with third-party OLT platforms.
● Supports port monitoring, port speed restriction, port SLA and other functions.
● Full line speed non blocking switching.
● Support automatic polarity identification (AUTO MDIX) for network interfaces.
● Supports IGMP snooping and controllable multicast.
● Support 802.1p priority scheduling.
● Supports 4K VLAN, VLAN tagging processing, stream classification and packet filtering, STP/RSTP protocol, and other functions.
● Supports DHCP Option60 to report physical location information of Ethernet interfaces Support PPPoE+ function for precise user identification.
● Support multicast/QoS, support IGMP Snooping.
● Support AES-128 encryption algorithm, support key generation and switching.
● Support a dual management mode based on DBA technology and priority, ensuring the minimum specified bandwidth requirements of users.
Main Parameter:
● EPON maximum splitting ratio 1:64, GPON maximum splitting ratio1:128. Maximum coverage radius 20km.
● EPON transmission rate 1.25 Gbps (symmetrical uplink/downlink), GPON transmission rate uplink 1.25Gbps, downlink 2.5Gbps.
● PON port receiving optical sensitivity: -27dBm.
● CATV receiving optical power range: -15~+2dBm/-18~+2dBm.
● AGC range can low to -18dBm.
● WIFI executive standards: IEEE 802.11b/g/n.
● Operating voltage: DC +12V.
● Operating temperature: 0~+50℃.

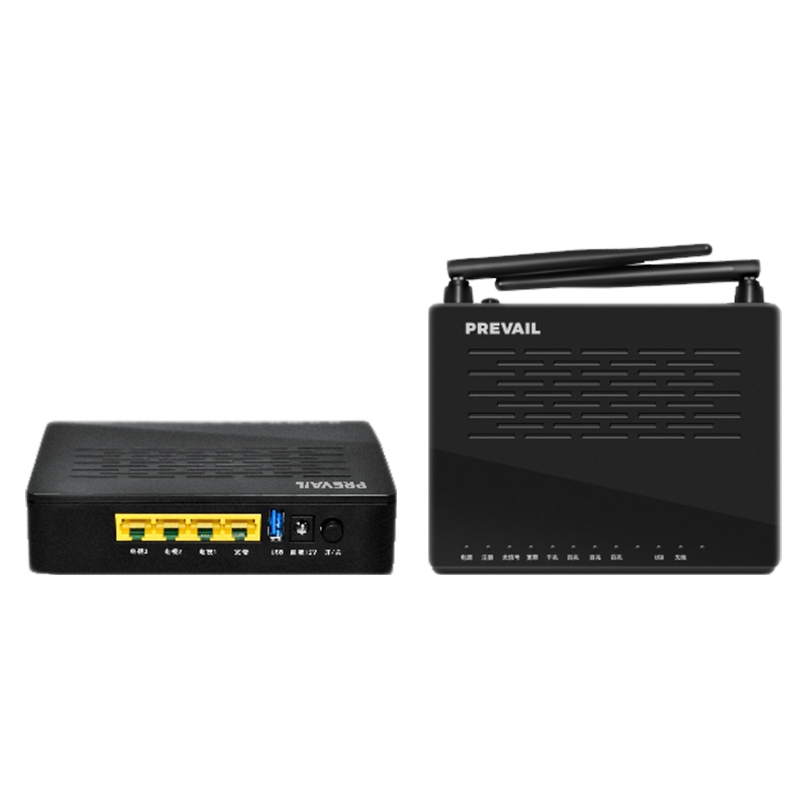

Main Equipment Models:
|
Model
|
General Characteristics
|
|
WE(G)P3200-S
（Pure data )
|
Power Consumption: ≤ 4.3W
Dimension: 150mm(L) x 120mm(W) x 38mm (H)
|
|
WE(G)P3200-C
（Data+CATV two-in-one Dual fiber )
|
Power Consumption: ≤5.3W
Dimension: 175mm(L) x130mm(W) x 35mm (H)
|
|
WE(G)P3200-W
（Data+WIFI two-in-one )
|
Power Consumption: ≤5W
Dimension: 150mm(L) x 140mm(W) x 38mm (H)
|
|
WE(G)P3200-C-W
（Data+WIFI+CATV three-in-one Dual fiber )
|
Power Consumption: ≤6W
Dimension: 185mm(L) x 145mm(W) x 35mm (H)
|
|
WE(G)P3200-T
（Data+CATV two-in-one Single fiber )
|
Power Consumption: ≤5.3W
Dimension: 175mm(L) x130mm(W) x 35mm (H)
|
|
WE(G)P3200-T-W
（Data+WIFI+CATV three-in-one Single fiber )
|
Power Consumption: ≤6W
Dimension: 185mm(L) x 145mm(W) x 35mm (H)
|
|
WE(G)P3200-S-01
（Single port pure data )
|
Power Consumption: ≤3W
Dimension: 90mm(L) x 70mm(W) x 25mm (H)
|
